Product Description

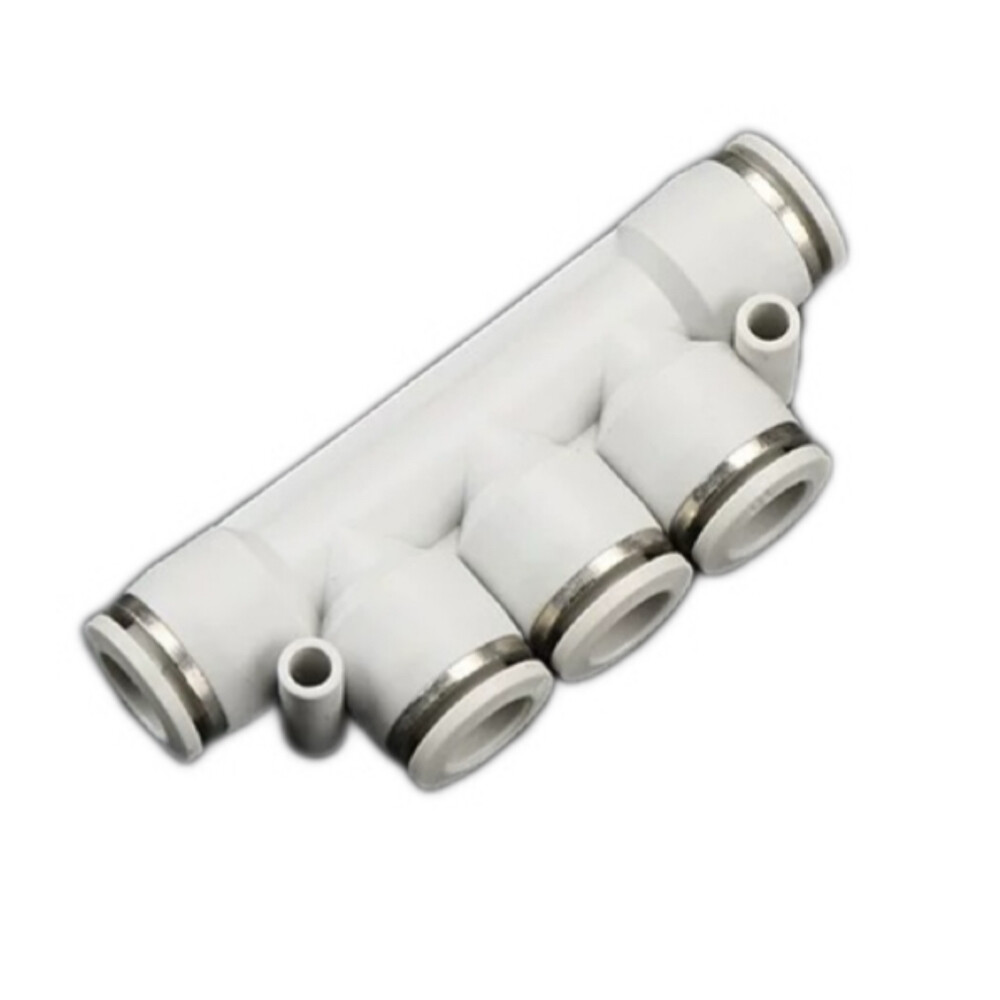

The QIANHUAZHIKEC Five-Way Air Hose Quick Connector is a specialized pneumatic component. Constructed from plastic, it offers durability and reliable performance. Its five-way design enables quick and secure connection of five 0.24″ (6mm) pneumatic hoses, making it suitable for a wide range of industrial applications where multi-branch air distribution and reliable connections are essential, especially in automation, textile, and chemical sectors.

Specifications

• Brand: QIANHUAZHIKEC
• Product Name: Five-Way Air Hose Quick Connector
• Model: PK-6
• Material: Plastic
• Hose Size: 0.24″ (6mm) OD (all five ports)
• Type: Five-Way Quick Connector
• Quantity: 1 Piece

Features

• Durability: Plastic construction withstands pneumatic system demands, resisting wear and ensuring long-term reliability.
• Quick Push-In Connection: Enables fast assembly of five pneumatic hoses, reducing installation time in industrial operations.
• Multi-Branch Layout: Facilitates air distribution in a five-way configuration, enabling flexible pneumatic piping designs for multi-point air supply.
• Alloy Clamp Design: Features alloy clamps that are pressure-resistant and not easy to disengage, ensuring secure hose retention.
• Versatility: Applicable for various industrial pneumatic applications, including automation factories, textile, chemical, food processing, and more, where reliable multi-branch air connections are required.

Application

Ideal for use in industrial pneumatic systems across multiple sectors such as automation, textile, chemical, food processing, automotive, and pharmaceutical industries. It can be used to connect five 0.24″ (6mm) pneumatic hoses, enabling efficient multi-branch air distribution in manufacturing, assembly, and other industrial processes where reliable and quick connections are essential.

Installation Guidelines

1. Ensure the ends of the pneumatic hoses (0.24″ / 6mm OD) are cut cleanly and free of debris.
2. Push each hose firmly into the corresponding push-in port of the five-way connector until they click into place, ensuring secure fits.
3. Test the pneumatic system after installation to ensure proper air flow and no leakage.
