Product Description

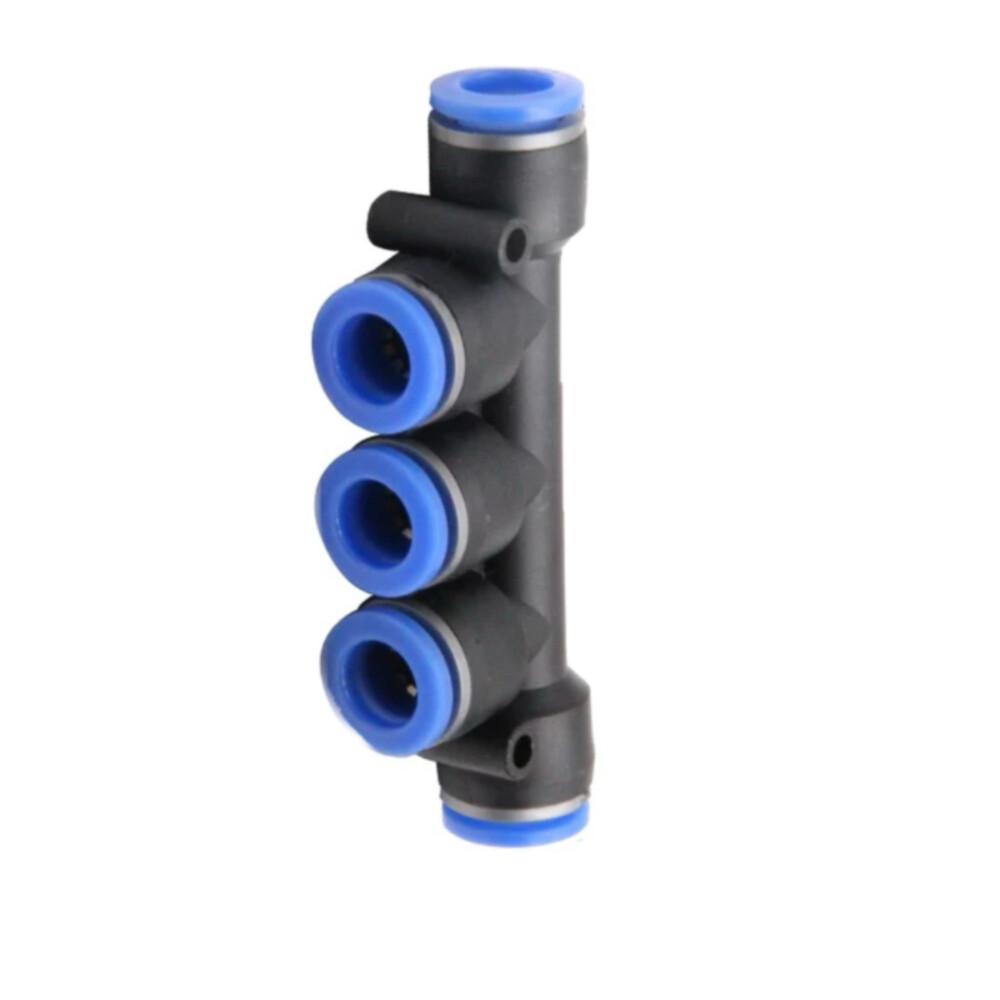

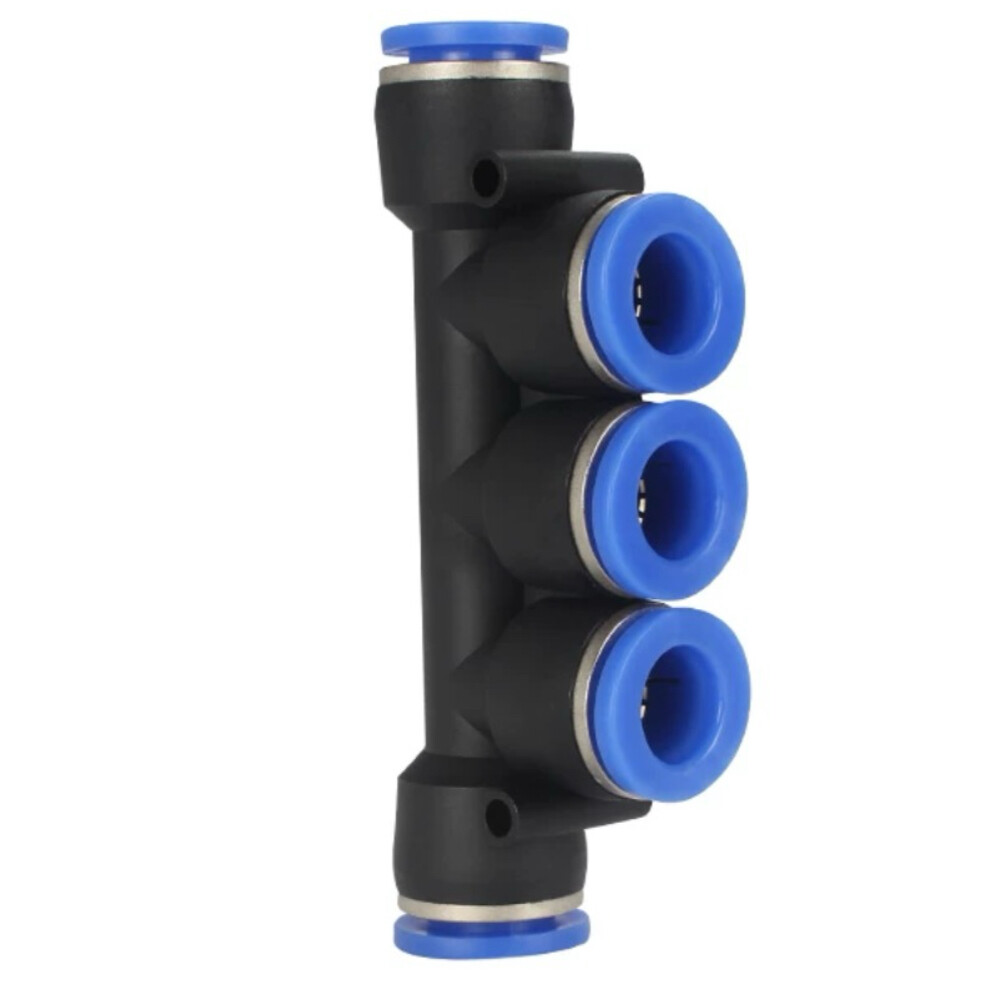

The QIANHUAZHIKEC Five-Way Quick Connector is a specialized component for pneumatic air systems. Constructed from plastic, it offers durability and reliable performance. Its five-way design allows for quick assembly of five 0.16″ (4mm) pneumatic hoses, enabling efficient multi-branch air distribution and flexible piping layouts in various industrial and automation setups.

Specifications

• Brand: QIANHUAZHIKEC
• Product Name: Five-Way Quick Connector
• Model: PK-4
• Material: Plastic
• Hose Size: 0.16″ (4mm) OD (all five ports)
• Type: Five-Way Connector
• Quantity: 1 Piece

Features

• Durability: Made from plastic to withstand pneumatic system demands, resisting wear and ensuring long-term use.
• Quick Push-In Connection: Enables fast assembly of five pneumatic hoses, reducing installation time in industrial operations.
• Multi-Branch Layout: Facilitates air distribution in a five-way configuration, enabling flexible pneumatic piping designs for multi-point air supply.
• Easy Installation: Suitable for straightforward push-in assembly, ideal for both professional and DIY pneumatic projects.
• Versatility: Applicable for various pneumatic applications, connecting multiple hoses for air transmission in machinery, automation, and pneumatic tool setups like air compressors and impact wrenches.

Application

Ideal for use in industrial pneumatic systems, automation equipment, and pneumatic tools. It can be used to connect five 0.16″ (4mm) pneumatic hoses, enabling efficient multi-branch air distribution in manufacturing, assembly, air pipeline systems, and other industrial processes involving pneumatic components.

Installation Guidelines

1. Ensure the ends of the pneumatic hoses (0.16″ / 4mm OD) are cut cleanly and free of debris.
2. Push each hose firmly into the corresponding push-in port of the five-way connector until they click into place, ensuring secure fits.
3. Test the pneumatic system after installation to ensure proper air flow and no leakage.
