Product Description

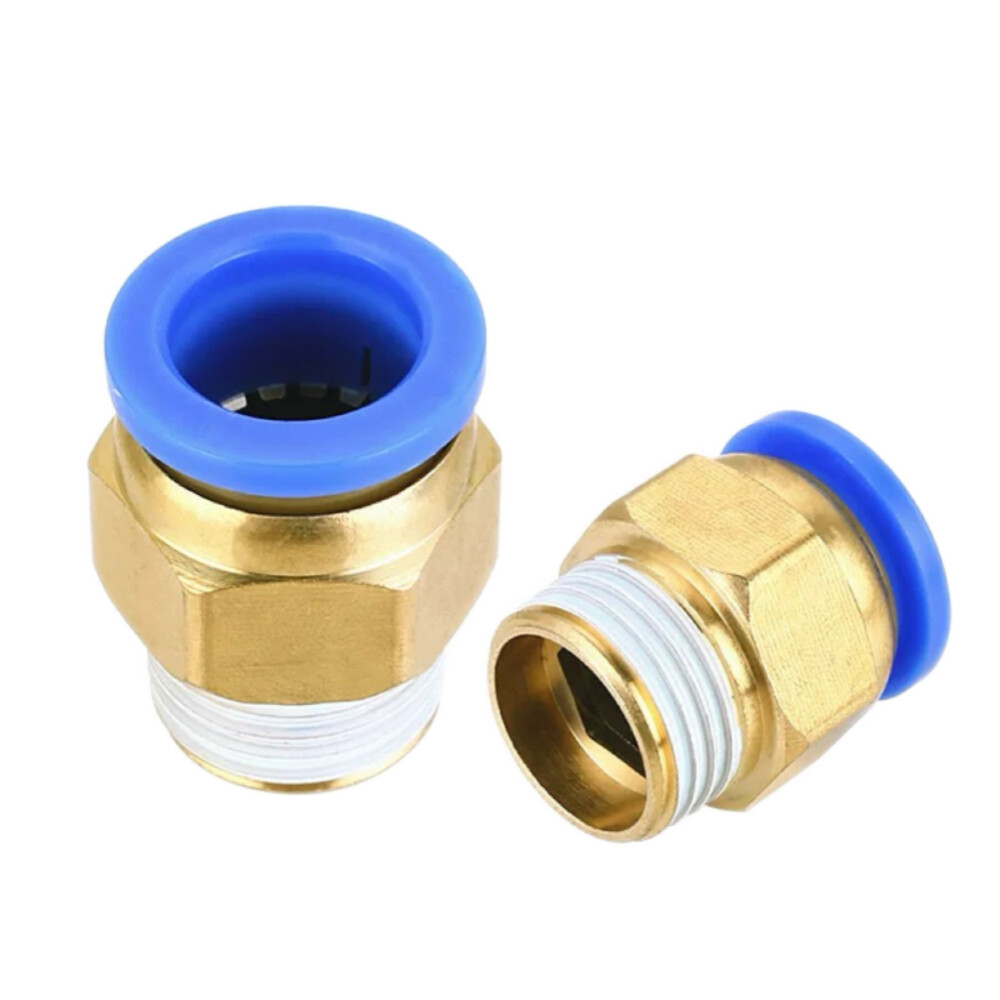

The WJZX Hex Male Thread Straight Push-In Fitting is a specialized component for pneumatic air systems. Constructed from plastic and copper-plated zinc, it offers durability and corrosion resistance. Its push-in design allows for quick assembly of 0.31″ (8mm) pneumatic hoses with M10 male threaded connections, making it convenient for installation and maintenance in various industrial and automation setups.
Specifications
- Brand: WJZX
- Product Name: Hex Male Thread Straight Push-In Fitting
- Model: PC801
- Material: Plastic + Copper-plated Zinc
- Hose Size: 0.31″ (8mm) ID
- Thread Size: M10 Male Thread
- Quantity: 1 Piece
Features
- Durability: Made from plastic and copper-plated zinc to withstand pneumatic system demands, resisting wear and corrosion.
- Quick Push-In Connection: Enables fast assembly of pneumatic hoses, reducing installation time in industrial operations.
- Hexagonal Design: Facilitates easy tightening and loosening of the male thread with a wrench, ensuring a secure connection.
- Efficient Air Flow: Designed for straight air piping, minimizing air resistance and ensuring optimal pneumatic performance.
- Versatility: Suitable for various pneumatic applications, connecting hoses to male threaded components in machinery and automation systems.
Application
Ideal for use in industrial pneumatic systems, automation equipment, and air-powered machinery. It can be used to connect 0.31″ (8mm) pneumatic hoses to M10 male threaded fittings, enabling efficient air transmission in manufacturing, assembly, and other industrial processes.
Installation Guidelines
- Ensure the end of the pneumatic hose (0.31″ / 8mm ID) is cut cleanly and free of debris.
- Push the hose firmly into the push-in port of the fitting until it clicks into place, ensuring a secure fit.
- Thread the male end of the fitting onto the corresponding female threaded component, tightening it securely with a wrench to prevent air leakage.
- Test the pneumatic system after installation to ensure proper air flow and no leakage.
