Product Description

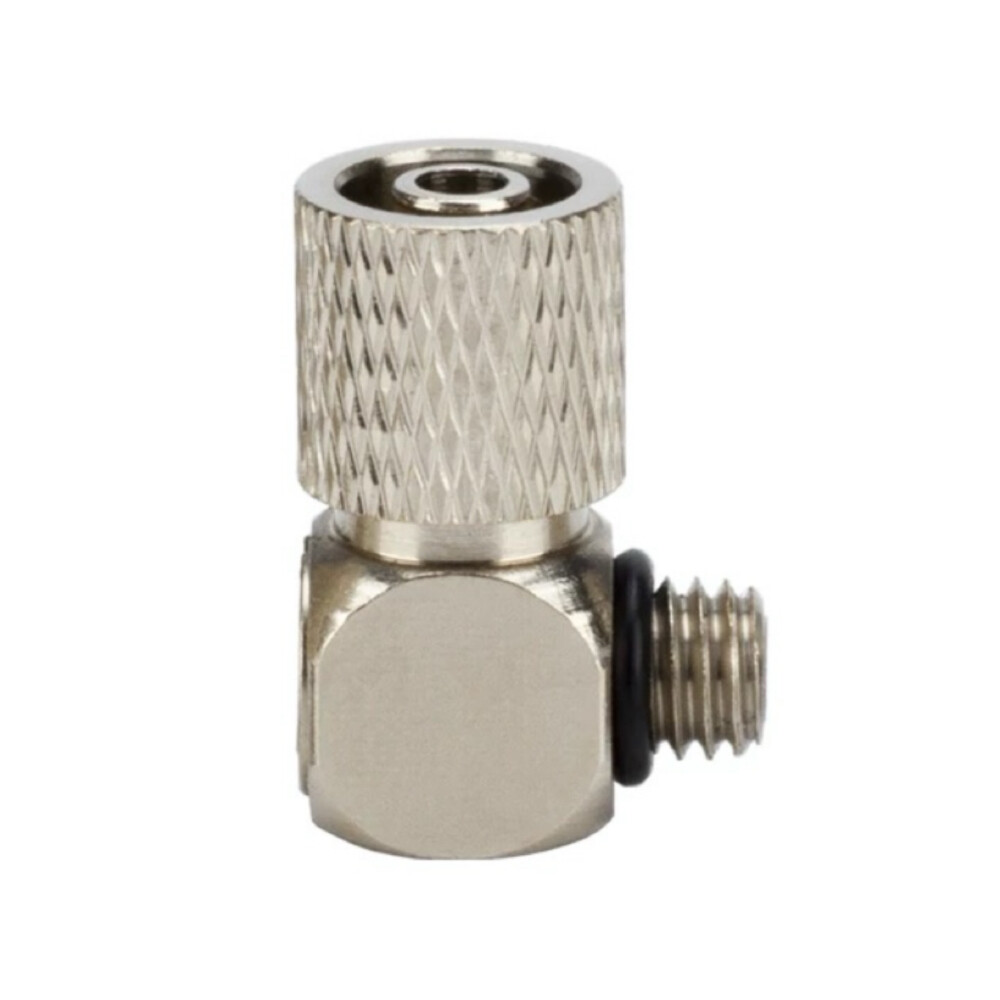

The FLYFLOW Micro Quick-Twist Elbow Air Hose Connector is a specialized component for micro pneumatic air systems. Constructed from brass with nickel plating, it offers excellent durability, corrosion resistance, and reliable performance. Its micro elbow design allows for quick twist-on assembly of 0.12″ (3mm) pneumatic hoses with M5 male threaded fittings, making it convenient for installation, maintenance, and repair in various micro industrial and automation setups, especially in machinery and 3D printing industries.

Specifications

• Brand: FLYFLOW
• Product Name: Micro Quick-Twist Elbow Air Hose Connector
• Model: PL3-M5
• Material: Brass with Nickel Plating
• Hose Size: 0.12″ (3mm) OD
• Thread Size: M5 Male Thread
• Type: 90° Elbow Connector
• Quantity: 1 Piece

Features

• Durability: Brass with nickel plating construction withstands micro pneumatic system demands, resisting wear, pressure, and corrosion.
• Quick Twist-On Connection: Enables fast assembly of micro pneumatic hoses via twist-on mechanism, reducing installation time in precision industrial operations.
• Compact Design: Optimized for micro pneumatic applications, enabling integration into space-constrained machinery and 3D printing equipment.
• 90° Directional Change: Facilitates air routing at a right angle, enabling flexible pneumatic piping designs in compact setups.
• Versatility: Suitable for various micro pneumatic applications, connecting hoses to male threaded components in machinery, 3D printing, and other compact industrial setups.

Application

Ideal for use in micro industrial machinery, 3D printing equipment, and other compact pneumatic systems requiring reliable and efficient micro air connections. It can be used to connect 0.12″ (3mm) micro pneumatic hoses to M5 male threaded fittings at a 90° angle, enabling efficient air transmission in precision manufacturing, 3D printing, and other industrial processes involving micro pneumatic components.

Installation Guidelines

1. Ensure the end of the micro pneumatic hose (0.12″ / 3mm OD) is cut cleanly and free of debris.
2. Insert the hose into the connector and twist the locking nut clockwise until it is securely tightened, ensuring a firm fit.
3. Thread the male end of the elbow onto the corresponding female threaded component, tightening it securely with a wrench (appropriate for M5 thread size) to prevent air leakage.
4. Test the micro pneumatic system after installation to ensure proper air flow and no leakage.
