Product Description

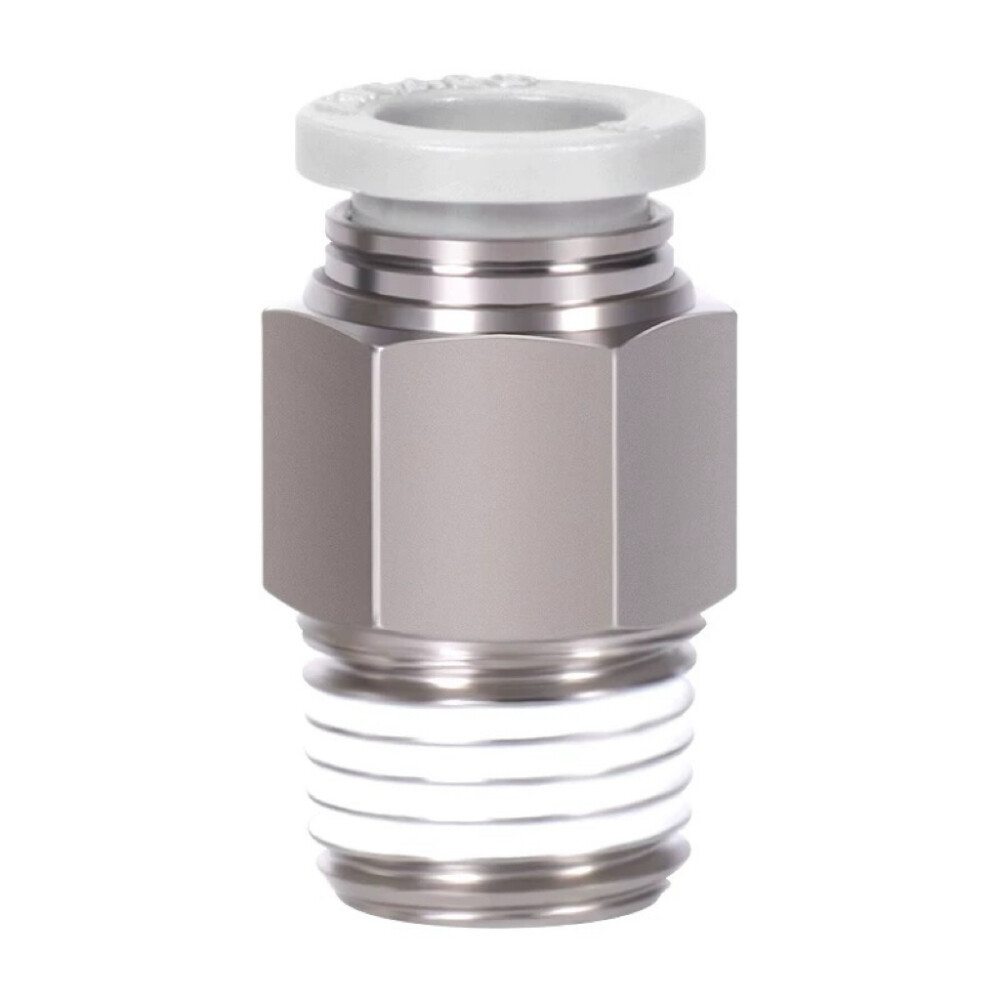

The AIRAC APC Series Straight Connector is a specialized pneumatic component. Constructed from brass with nickel plating, it offers excellent durability, corrosion resistance, and reliable performance. Its design enables quick and secure connection of a 0.31″ (8mm) pneumatic hose to a 1/4″ male threaded (Rc1/4) component, making it suitable for a wide range of industrial applications where reliable and efficient straight connections are essential.
Specifications
- Brand: AIRAC
- Product Name: APC Series Straight Connector
- Model: X-APC802
- Material: Brass with Nickel Plating
- Hose Size: 0.31″ (8mm) OD
- Thread Size: 1/4″ Male Thread (Rc1/4)
- Type: Straight Connector
- Quantity: 1 Piece
Features
- Durability: Brass with nickel plating construction withstands pneumatic system demands, resisting wear and ensuring long-term reliability.
- Compact Design: Small appearance saves installation space, ideal for crowded pneumatic setups.
- Leak Resistance: Threaded part is coated with sealant, and M5 metric thread sealing washers ensure no leakage in threaded connections.
- Quick Plug-In Connection: Enables fast assembly of the pneumatic hose, reducing installation time in industrial operations.
- Versatility: Applicable for various industrial pneumatic applications, providing reliable air transmission between hoses and threaded components.
Application
Ideal for use in industrial pneumatic systems across multiple sectors where reliable straight connections between hoses and threaded components are required. It can be used in various pneumatic systems in industries such as manufacturing, assembly, and automation, enabling efficient air transmission between a 0.31″ (8mm) hose and a 1/4″ threaded component.
Installation Guidelines
- Ensure the end of the pneumatic hose (0.31″ / 8mm OD) is cut cleanly and free of debris.
- Push the hose firmly into the quick plug port of the straight connector until it clicks into place, ensuring a secure fit.
- Thread the male end of the connector onto the corresponding female threaded component, tightening it securely with a wrench (appropriate for Rc1/4 thread size) to prevent air leakage.
- Test the pneumatic system after installation to ensure proper air flow and no leakage.
