Product Description

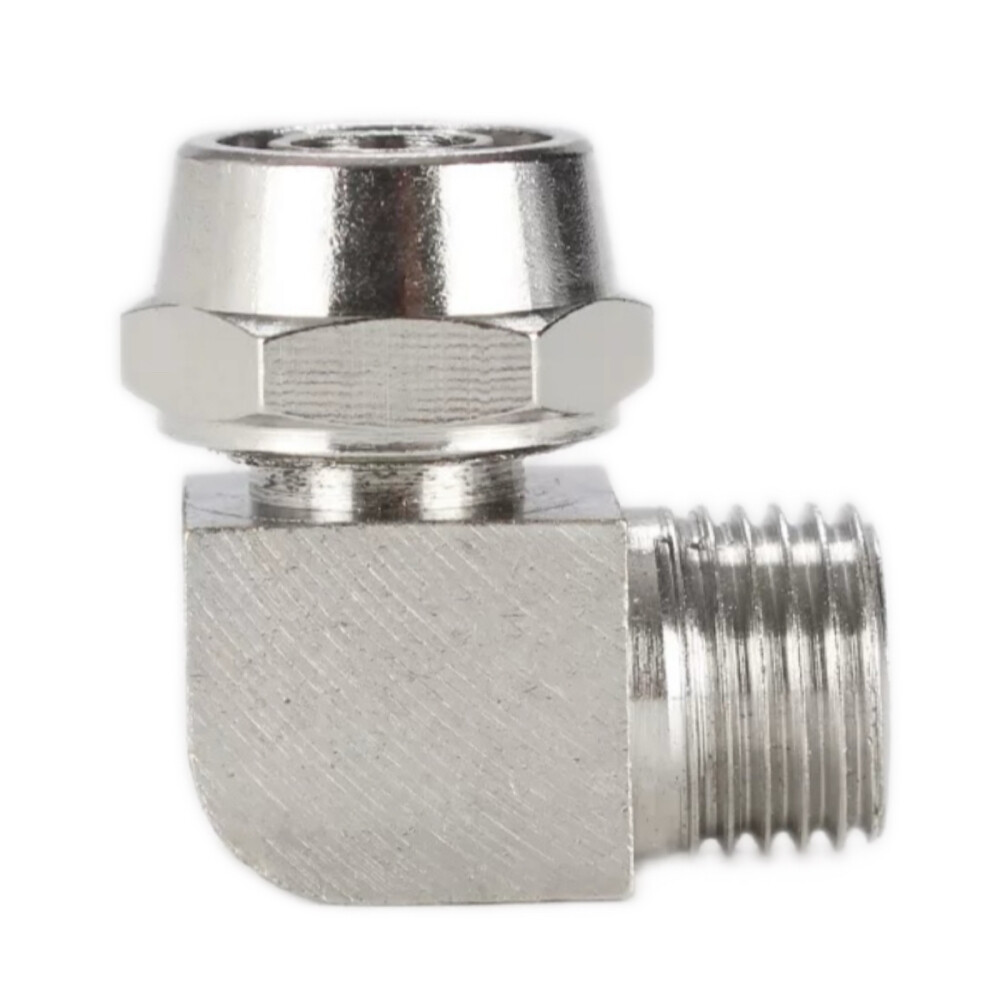

The ICEY Threaded Elbow Air Hose Connector is a specialized component for pneumatic air systems. Constructed from brass with nickel plating, it offers excellent durability, corrosion resistance, and high strength. Its 90° elbow design allows for quick twist-on assembly of 0.16″ (4mm) pneumatic hoses with 1/4″ male threaded (G1/4) fittings, making it convenient for installation, maintenance, and repair in various industrial and automation setups demanding high precision and pressure resistance.

Specifications

• Brand: ICEY
• Product Name: Threaded Elbow Air Hose Connector
• Model: BYQD-08 Series PL4-02
• Material: Brass with Nickel Plating
• Hose Size: 0.16″ (4mm) OD
• Thread Size: 1/4″ Male Thread (G1/4)
• Type: 90° Elbow Connector
• Quantity: 1 Piece

Features

• Durability: Brass with nickel plating construction withstands high pressures, corrosion, and wear, ensuring long-term reliability in pneumatic systems.
• Quick Twist-On Connection: Enables fast assembly of pneumatic hoses via twist-on mechanism, reducing installation time in industrial operations.
• 90° Directional Change: Facilitates air routing at a right angle, enabling flexible pneumatic piping designs around obstacles.
• High Precision & Pressure Resistance: Designed for high-precision pneumatic applications, capable of withstanding substantial air pressures.
• Corrosion Resistance: Nickel plating enhances corrosion resistance, making it suitable for use in diverse environmental conditions.

Application

Ideal for use in industrial pneumatic systems, automation equipment, and machinery requiring high precision and pressure resistance. It can be used to connect 0.16″ (4mm) pneumatic hoses to 1/4″ male threaded (G1/4) fittings at a 90° angle, enabling efficient air transmission and flexible routing in manufacturing, assembly, and other industrial processes.

Installation Guidelines

1. Ensure the end of the pneumatic hose (0.16″ / 4mm OD) is cut cleanly and free of debris.
2. Insert the hose into the connector and twist the locking nut clockwise until it is securely tightened, ensuring a firm fit.
3. Thread the male end of the elbow onto the corresponding female threaded component, tightening it securely with a wrench to prevent air leakage.
4. Test the pneumatic system after installation to ensure proper air flow and no leakage.
