Product Description

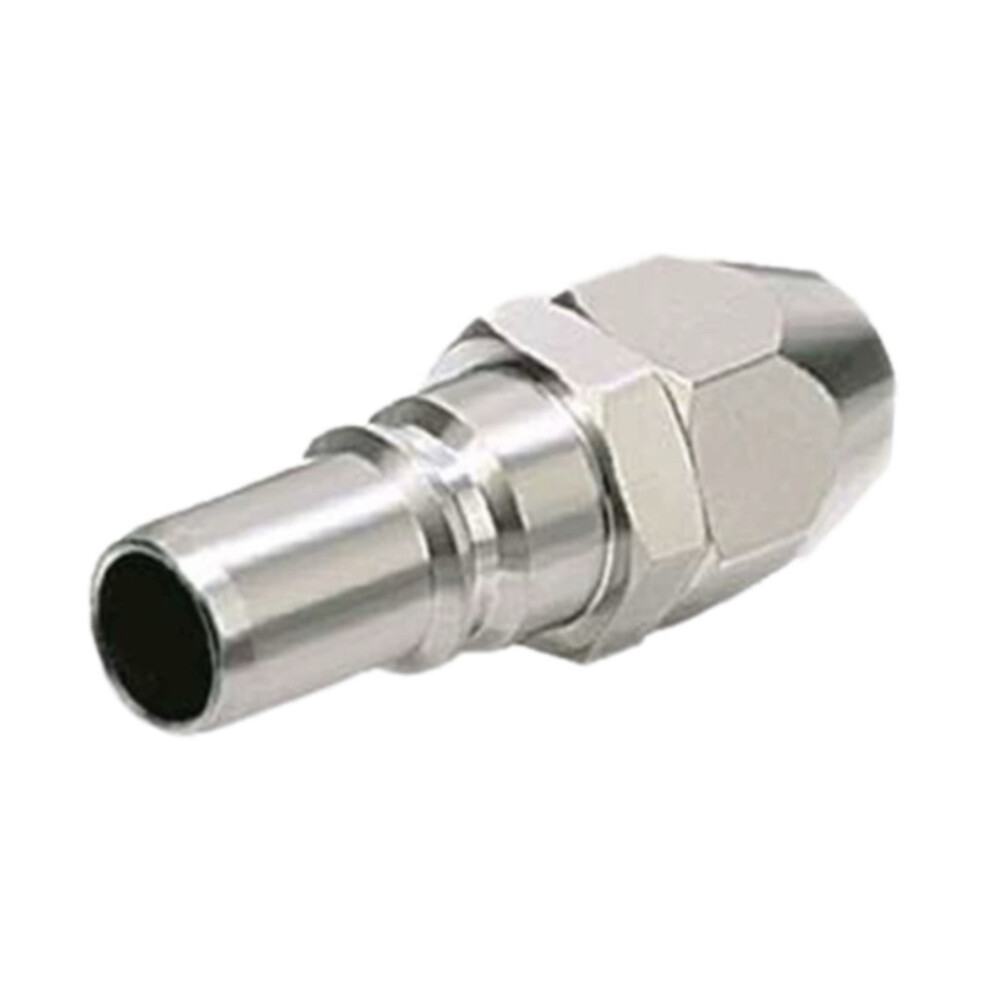

The SMC KK Series Tube Connector Plug with Nut is a specialized pneumatic component. Constructed from brass with nickel plating, it offers excellent durability, corrosion resistance, and reliable performance. Its design enables quick and secure connection in pneumatic systems, making it suitable for a wide range of applications where reliable and efficient connections for air and water fluids are essential.

Specifications

• Brand: SMC
• Product Name: KK Series Tube Connector Plug with Nut
• Model: KK6P-80N
• Material: Brass with Nickel Plating
• Quick Plug Size: 0.47″ (12mm)
• Type: Tube Connector Plug
• Quantity: 1 Piece

Features

• Durability: Brass with nickel plating construction withstands pneumatic system demands, resisting wear and ensuring long-term reliability.
• Standardized Quick Plug: The quick plug type is standardized, ensuring compatibility with standard pneumatic setups.
• Fluid Compatibility: Suitable for use with air and water fluids, expanding application versatility.
• Single-Handed Quick Connection: Enables fast and simple connection with single-handed operation, enhancing work efficiency.
• Sleeve Lock Structure: Prevents accidental disconnection (except for M5 threads), ensuring secure operation.

Application

Ideal for use in industrial pneumatic systems across multiple sectors where reliable and quick connections for air and water fluids are required. It can be used in various pneumatic setups to establish secure connections, enabling efficient fluid transmission in manufacturing, assembly, and other industrial processes.

Installation Guidelines

1. Ensure the end of the pneumatic hose (0.47″ / 12mm) is cut cleanly and free of debris.
2. Push the hose firmly into the quick plug port of the connector until it clicks into place, ensuring a secure fit.
3. Connect the plug to the corresponding socket in the pneumatic system, ensuring the sleeve lock structure engages properly to prevent accidental disconnection.
4. Test the pneumatic system after installation to ensure proper fluid flow and no leakage.
