Product Description

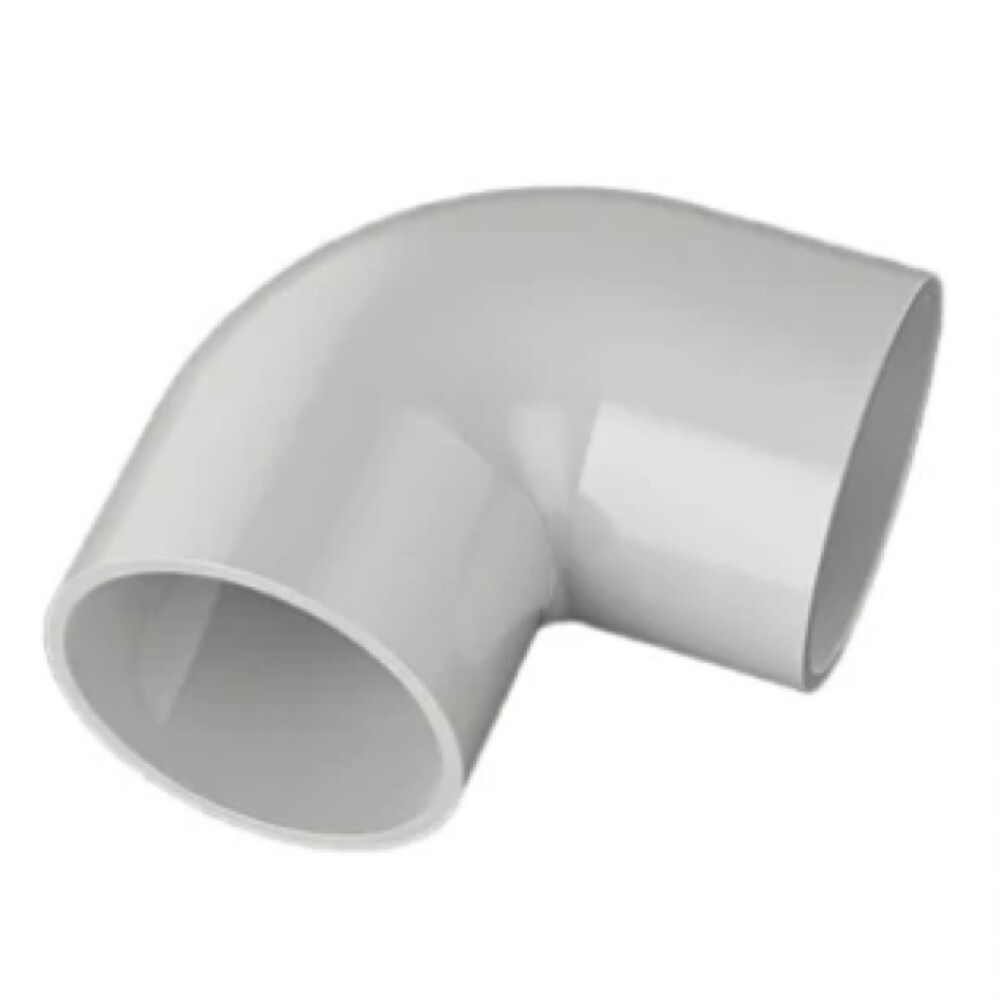

The JUNTIAN PVC Electrical Conduit Elbow is a specialized fitting engineered for PVC electrical conduit systems. Constructed from premium PVC material, it offers excellent durability, electrical insulation, and impact resistance, ensuring the safety and integrity of enclosed electrical wiring in both residential and commercial settings. Its 90° angle facilitates precise directional changes in wiring layouts.

Specifications

• Brand: JUNTIAN
• Product Name: PVC Electrical Conduit Elbow (National Standard)
• Size: dn20 (0.79″)
• Compatible Pipe Diameter: 0.79″ (20mm)
• Material: PVC
• Color: White
• Connection Method: Socket Bonding
• Angle: 90° Elbow

Features

• Durability: Constructed from PVC to withstand the demands of electrical conduit systems, resisting impact and environmental wear.
• Electrical Insulation: Excellent insulation performance, enhancing the safety of electrical wiring systems.
• Leak-Proof Connection: Socket bonding design ensures a tight seal when properly installed, preventing moisture and debris from entering the conduit.
• Precise Angling: 90° angle facilitates accurate directional changes in electrical conduit layouts.

Application

Perfect for use in residential homes, commercial buildings, and industrial facilities where directional changes in electrical conduits are required. It can be used in indoor wiring systems to redirect electrical wires around obstacles and into desired paths.

Installation Guidelines

1. Ensure the ends of the PVC electrical conduit pipes and the inner surface of the elbow socket are clean, dry, and free of debris.
2. Apply a uniform layer of PVC solvent cement to the outer surface of the pipe end and the inner surface of the elbow socket.
3. Immediately insert the pipe into the elbow socket, ensuring it is fully seated and held in place for a few seconds to allow the cement to set.
4. Allow the solvent cement to cure completely as per the manufacturer’s instructions before running electrical wires through the conduit.
