Product Description

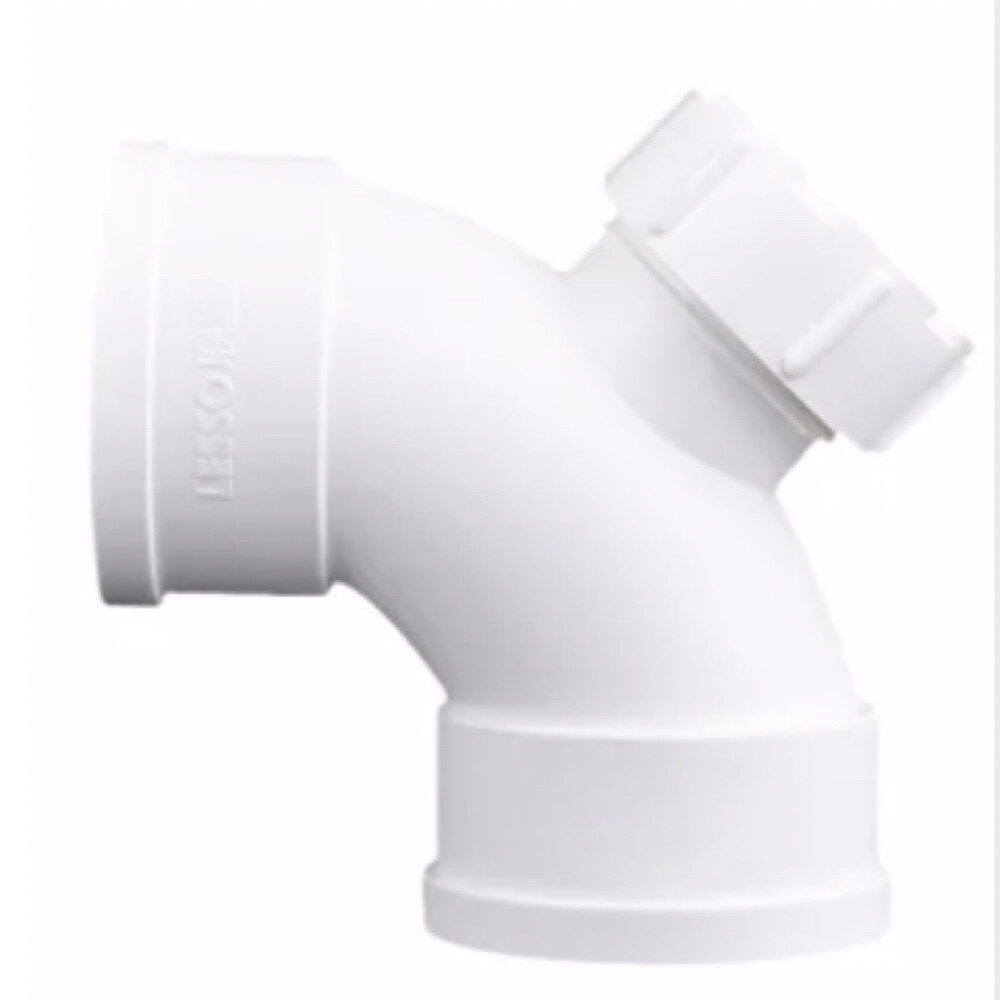

The JUNTIAN PVC-U Drainage 90° Elbow with Inspection Port is a specialized fitting engineered for PVC-U drainage systems. Constructed from premium PVC-U material, it offers excellent durability, corrosion resistance, and the convenience of an inspection port for maintenance. Its 90° angle facilitates precise directional changes in drainage pipe layouts while allowing easy access for system checks.

Specifications

• Brand: JUNTIAN
• Product Name: PVC-U Drainage 90° Elbow (with Inspection)
• Size: dn110 (4.33″)
• Compatible Pipe Diameter: 4.33″ (110mm)
• Material: PVC-U
• Color: White
• Connection Method: Socket Bonding
• Type: 90° Elbow with Inspection Port

Features

• Durability: Constructed from PVC-U to withstand the demands of drainage systems, resisting water corrosion and wear.
• Leak-Proof Connection: Socket bonding design ensures a tight seal when properly installed, preventing water leakage.
• Inspection Port: Allows easy access for maintenance, troubleshooting, and system checks in drainage layouts.
• Precise Angling: 90° angle facilitates accurate directional changes in drainage pipe systems.

Application

Perfect for use in residential homes, commercial buildings, and industrial facilities where directional changes and maintenance access in drainage pipes are required. It can be used in bathroom, kitchen, and outdoor drainage systems to redirect water flow and provide a point for inspection and maintenance.

Installation Guidelines

1. Ensure the ends of the PVC-U drainage pipes and the inner surface of the elbow sockets (including the inspection port area) are clean, dry, and free of debris.
2. Apply a uniform layer of PVC-U solvent cement to the outer surface of the pipe ends and the inner surface of the elbow sockets.
3. Immediately insert the pipes into the elbow sockets, ensuring they are fully seated and held in place for a few seconds to allow the cement to set.
4. Allow the solvent cement to cure completely as per the manufacturer’s instructions before testing the drainage system. Ensure the inspection port is properly sealed after any maintenance checks.
