Product Description

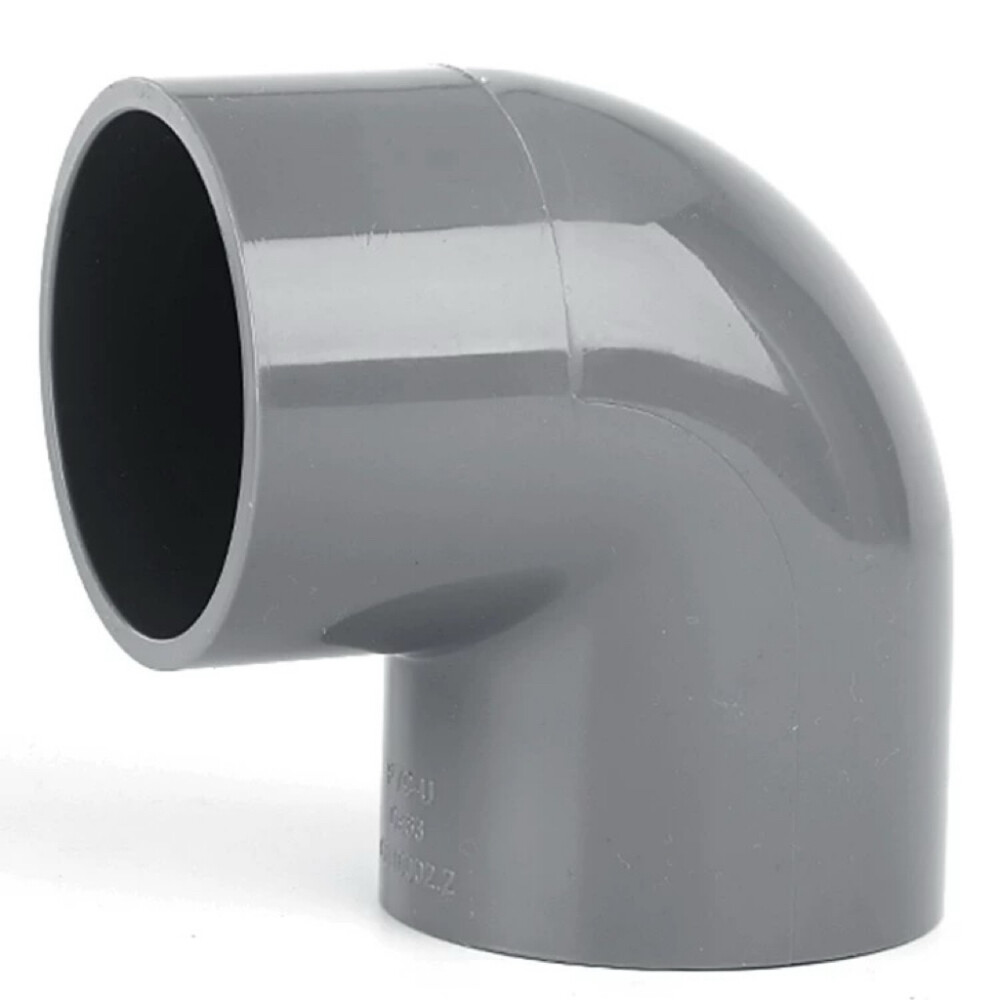

The HS PVC Water Supply 90° Elbow is a specialized fitting engineered for PVC water supply systems. Constructed from premium PVC material, it offers excellent durability, corrosion resistance, and reliable performance in conveying water. Its 90° angle facilitates precise directional changes in water supply pipe layouts, ensuring efficient water distribution.

Specifications

• Brand: HS
• Product Name: PVC Water Supply 90° Elbow
• Size: 0.79″ (20mm)
• Material: PVC
• Color: Gray
• Connection Method: Socket Bonding
• Type: 90° Elbow
• Nominal Pressure: 1.0MPa
• Compatible Pipe Diameter: 0.79″ (20mm)

Features

• Durability: Constructed from PVC to withstand the demands of water supply systems, resisting corrosion and wear.
• Leak-Proof Connection: Socket bonding design ensures a tight seal when properly installed, preventing water leakage.
• Precise Angling: 90° angle facilitates accurate directional changes in water supply pipe layouts.
• Pressure Resistance: 1.0MPa pressure rating makes it suitable for standard water pressure applications.

Application

Ideal for use in residential water supply systems, commercial building plumbing, and light industrial facilities where directional changes in water pipes are required. It can be used to redirect water flow around obstacles and into desired paths in indoor plumbing systems.

Installation Guidelines

1. Ensure the ends of the PVC water supply pipes and the inner surface of the elbow socket are clean, dry, and free of debris.
2. Apply a uniform layer of PVC solvent cement to the outer surface of the pipe end and the inner surface of the elbow socket.
3. Immediately insert the pipe into the elbow socket, ensuring it is fully seated and held in place for a few seconds to allow the cement to set.
4. Allow the solvent cement to cure completely as per the manufacturer’s instructions before pressurizing the water supply system.
