Product Characteristics

• Durability: Made from plastic, the quick connector is lightweight, corrosion-resistant, and designed for reliable use in pneumatic air transfer scenarios.

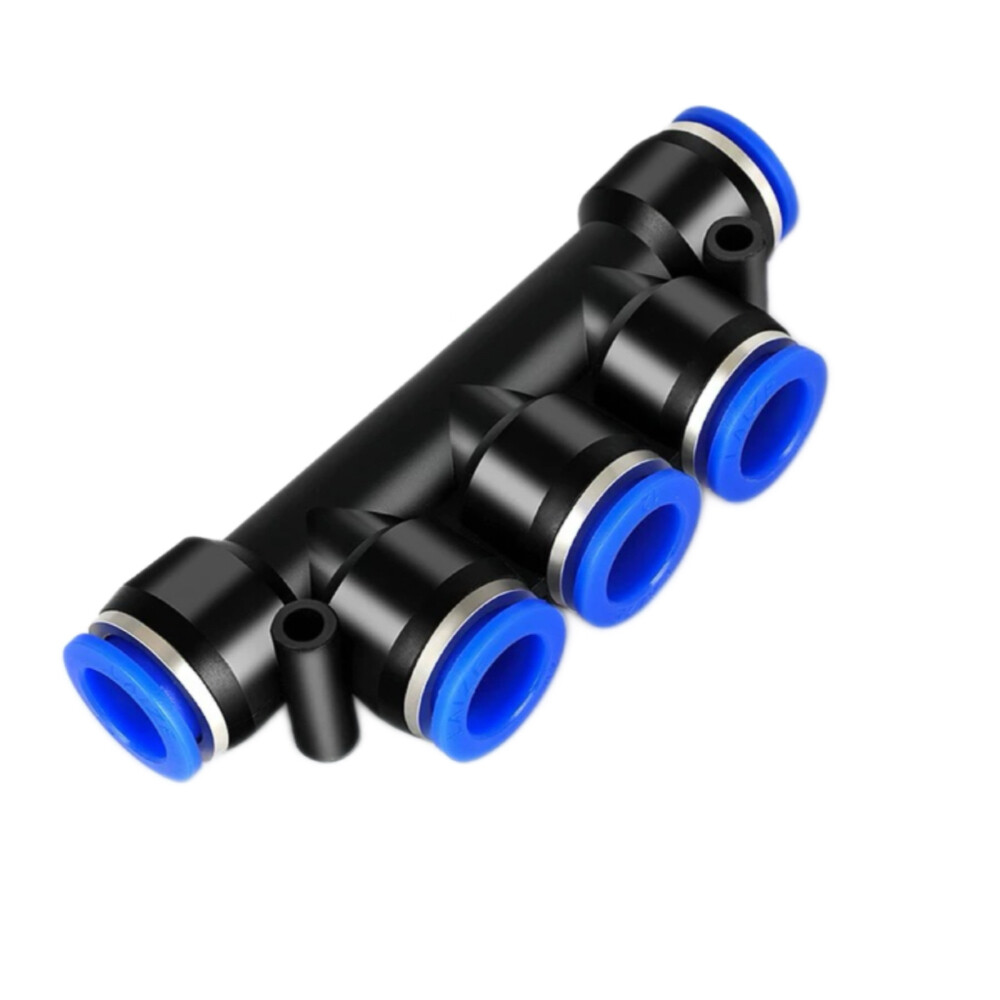

• Flow Splitting Performance: Five-way reducing design allows for distributing air flow from an 8mm tube to three 6mm tubes and back to an 8mm tube, suitable for multi-branch pneumatic setups.
• Installation Ease: Quick-insert mechanism enables instant tube engagement, saving time during pneumatic system assembly and maintenance.

How to Use

1. Ensure the tube outer diameters match the connector ports: 8mm for the larger ports and 6mm for the smaller ports.
2. Push each tube firmly into the respective ports until they click into place, indicating secure connections.
3. To disconnect a tube, press the release collar and pull the tube out. Inspect all connections for air leaks before operating the system, and regularly check for any signs of wear or damage.

Maintenance Tips

• Periodically inspect the connector for signs of wear, damage, or air leaks.
• Ensure all tubes remain securely attached; reposition or replace the tubes if they become loose.
• Clean the connector and tubes regularly to prevent debris buildup that could affect air flow or sealing.
• Replace the connector immediately if any damage or leakage is detected to prevent pneumatic system issues.
