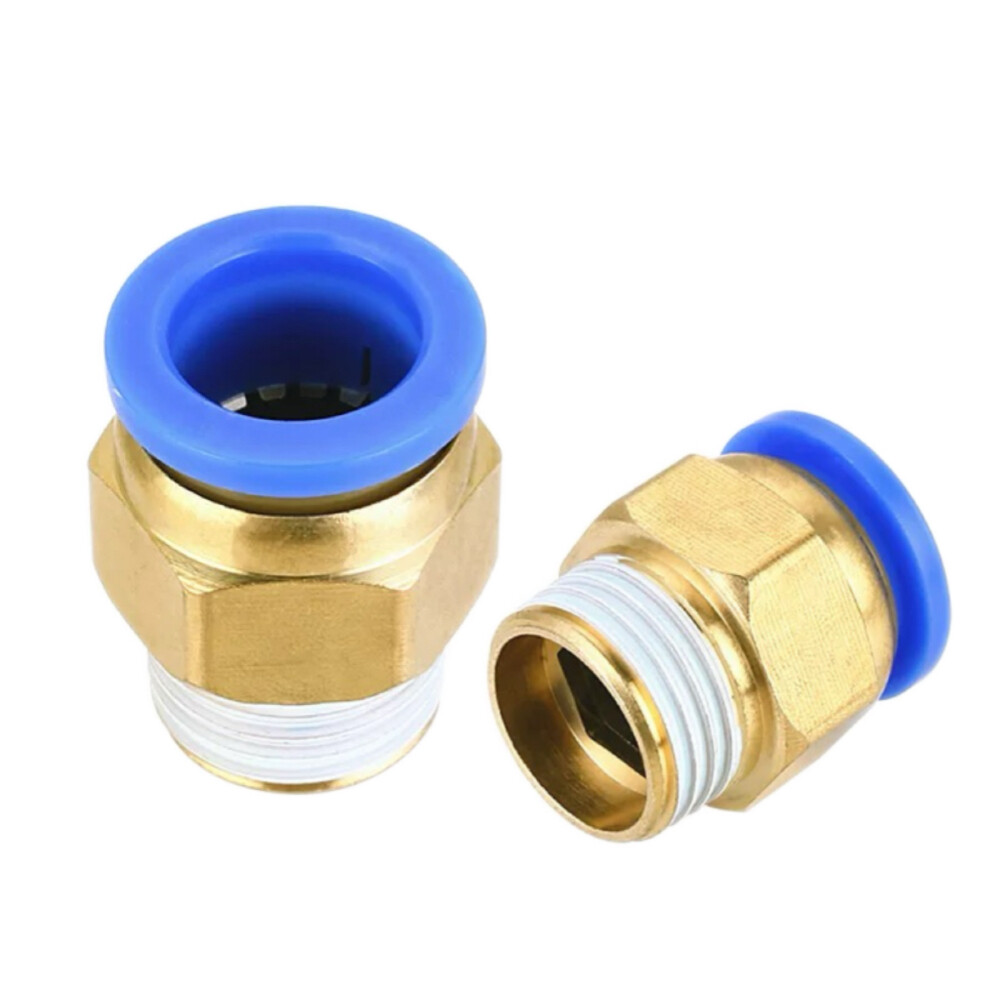

Product Characteristics

• Durability: Constructed from brass and plastic, the quick connector is robust, wear-resistant, and designed for long-term use in pneumatic applications.
• Connection Efficiency: Quick-connect mechanism allows for instant tube insertion and removal, saving time during pneumatic system assembly and maintenance.
• Sealing Performance: Provides reliable airtight sealing between the tube and threaded port, ensuring stable air pressure in pneumatic operations.

How to Use

1. Ensure the tube outer diameter is 10mm and the threaded port is 1/4″ NPT.
2. Push the 10mm OD tube firmly into the connector’s tube port until it clicks into place, indicating a secure connection.
3. Apply thread sealant (if needed) to the 1/4″ NPT male thread and screw the connector onto the threaded port by hand first, then tighten with a wrench (avoid over-tightening).
4. To disconnect the tube, press the release collar and pull the tube out. Inspect the connection for leaks before operating the system, and regularly check for any signs of wear or damage.

Maintenance Tips

• Periodically inspect the connector for signs of wear, corrosion, or air leaks.
• Ensure the tube and threaded connections remain clean and free of debris to maintain optimal performance.
• Lubricate the release collar (if applicable) to ensure smooth tube disconnection.
• Replace the connector immediately if any damage or leakage is detected to prevent pneumatic system issues.
