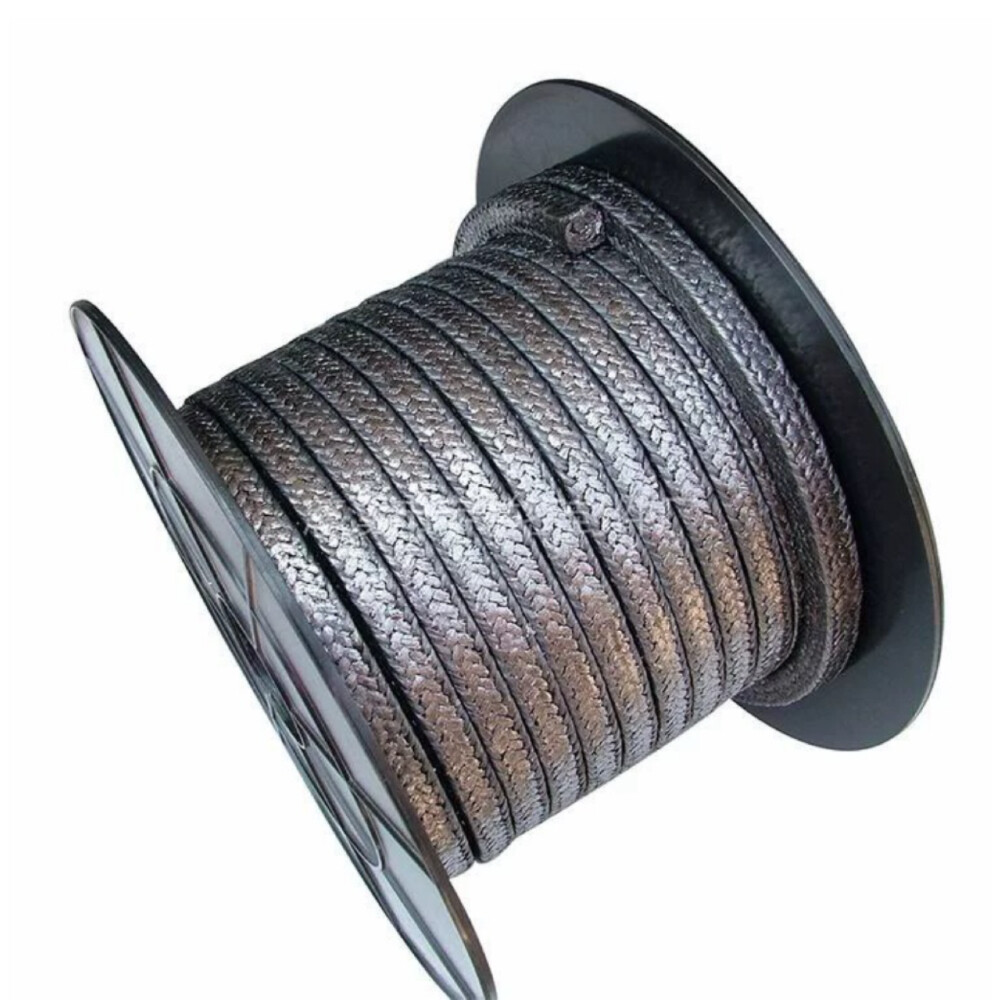

Product Introduction

• Brand: JIUWANG
• Product Name: Graphite Packing
• Material: Flexible Graphite
• Section Size: 0.31in×0.31in (8×8mm)
• Length: 3.28ft (1 Meter)
• Color: Black
• Application: Sealing in Valves, Pumps, Reactors with High-Temperature, High-Pressure, and Corrosive Media

Product Features

• Made from flexible graphite, this packing has a very low friction coefficient, reducing wear and tear in dynamic sealing applications.
• With a precise square section of 0.31in×0.31in (8×8mm), it fits accurately into compatible equipment, guaranteeing optimal sealing performance.
• It exhibits good heat conductivity, making it suitable for use in high-temperature environments without compromising sealing efficiency.
• The material is non-abrasive, meaning it will not wear pump shafts or valve stems, thus extending the service life of your equipment.
• It has excellent chemical resistance and high resilience, ensuring reliable sealing even in the presence of strong corrosive media.
• Available in 1-meter (3.28ft) lengths, with custom length options available to meet specific application needs.

Usage Instructions

1. Before installation, ensure the equipment (valve, pump, reactor) is shut down and isolated from all power sources.
2. Remove the old packing (if present) and thoroughly clean the packing chamber to remove any debris, residue, or old sealing material.
3. Cut the JIUWANG graphite packing to the required length, ensuring clean, square cuts for optimal sealing.
4. Install the packing into the packing chamber, layer by layer, ensuring each layer is properly seated and aligned. For square section packing, ensure the corners fit snugly into the chamber.
5. Adjust the packing gland to achieve the desired sealing tightness. Avoid over-tightening, which can cause excessive friction and wear.
6. After installation, conduct a leak test under operating conditions. Monitor the seal for any signs of leakage or abnormal operation. Adjust the gland as necessary during initial operation.

Applicable Scenarios

• Valves and Pumps Handling High-Temperature, High-Pressure Fluids
• Reactors with Strong Corrosive Media
• Industrial Equipment Requiring Reliable Sealing with Low Friction and Long Equipment Life
