Product Introduction

• Brand: XHD

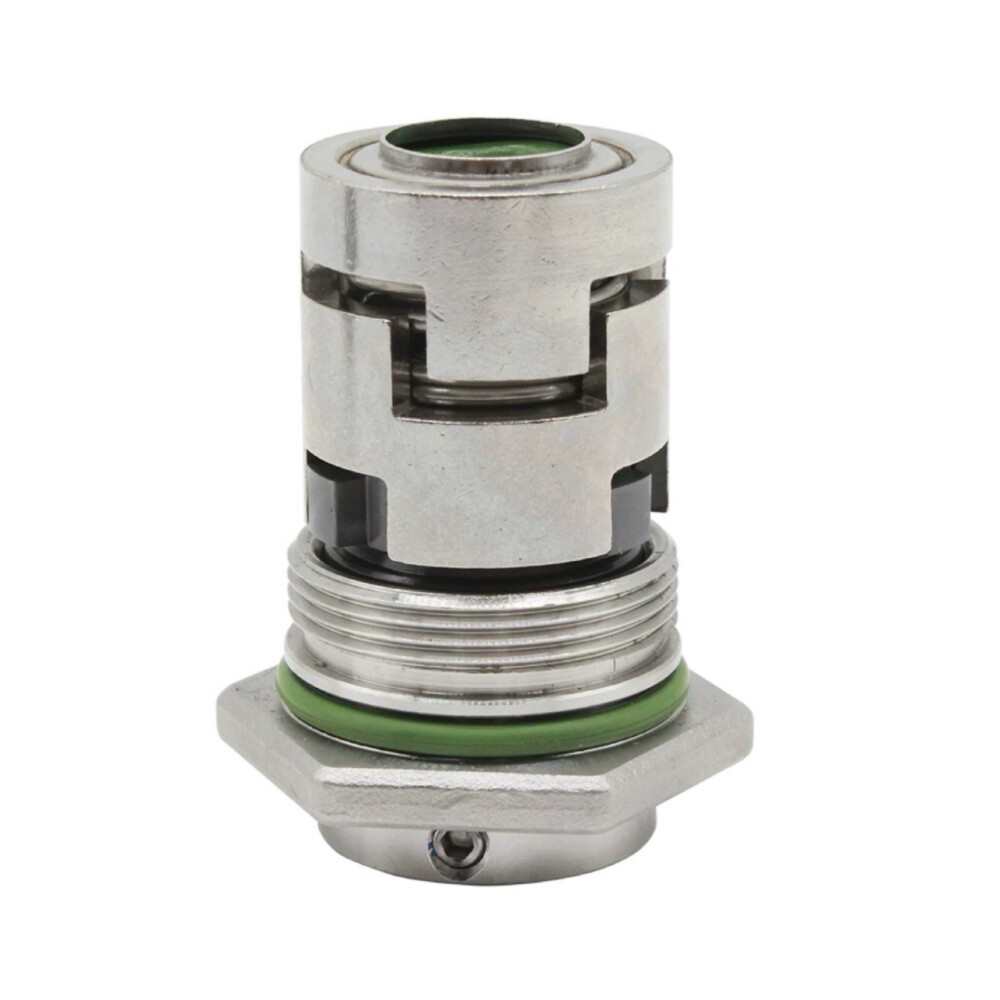

• Product Name: Mechanical Seal
• Model: 104-35
• Material: Alloy-Fluororubber
• Shaft/Sleeve Outer Diameter: 1.38in (35mm)
• Quantity: 1 Piece
• Application: Equipment Requiring Sealing in Moderate Temperature (≤150°C), Pressure (≤0.8MPa), and High-Line-Speed (≤15m/s) Environments

Product Features

• Constructed from alloy and fluororubber, this mechanical seal offers superior wear resistance, is not prone to leakage, and can withstand temperatures up to 150°C, making it suitable for diverse operating conditions.
• With a precise 1.38in (35mm) shaft/sleeve outer diameter, it fits accurately into compatible equipment, guaranteeing optimal sealing performance.
• With a maximum pressure tolerance of 0.8MPa, it maintains a reliable seal in relevant pressure processes, preventing fluid leakage and ensuring operational efficiency and safety.
• It is compatible with a line speed of up to 15m/s, making it suitable for equipment operating at high speeds.
• Designed for whole assembly disassembly, it allows for easy installation and maintenance, reducing downtime and operational disruptions.
• Packaged as a single piece, it is convenient for individual repair or replacement tasks, ensuring you have the exact component needed for your equipment.

Usage Instructions

1. Ensure the equipment is shut down and isolated from all power sources before beginning the installation process.
2. Remove the old mechanical seal (if present) and thoroughly clean the shaft, sleeve, and seal cavity to remove any debris, residue, or old sealing material.
3. Inspect the new XHD mechanical seal for any visible damage or defects. Verify that the shaft/sleeve outer diameter (1.38in/35mm) matches your equipment’s specifications.
4. Install the seal according to the manufacturer’s guidelines, taking advantage of its whole assembly disassembly design for convenient installation. Ensure proper alignment and seating to maintain sealing integrity.
5. Reassemble the equipment and conduct a leak test under low pressure initially. Gradually increase the pressure and monitor the seal for any signs of leakage or abnormal operation.
6. Perform regular inspections during routine maintenance to check for wear, damage, or leakage. Replace the seal promptly if any issues are detected to avoid equipment damage or operational failures.

Applicable Scenarios

• Industrial Equipment Operating in Moderate Temperature (≤150°C), Pressure (≤0.8MPa), and High-Line-Speed (≤15m/s) Environments
• Fluid Handling Systems Requiring Reliable Sealing with Alloy-Fluororubber Compatibility
• Equipment Where Easy Installation and Maintenance of Seals are Essential
