Product Characteristics

• Material Composition: Made from a combination of nylon PA, toothed stainless steel sheet, and stainless steel round material, ensuring durability, temperature resistance (-20℃ to +120℃), impact resistance, and corrosion resistance.

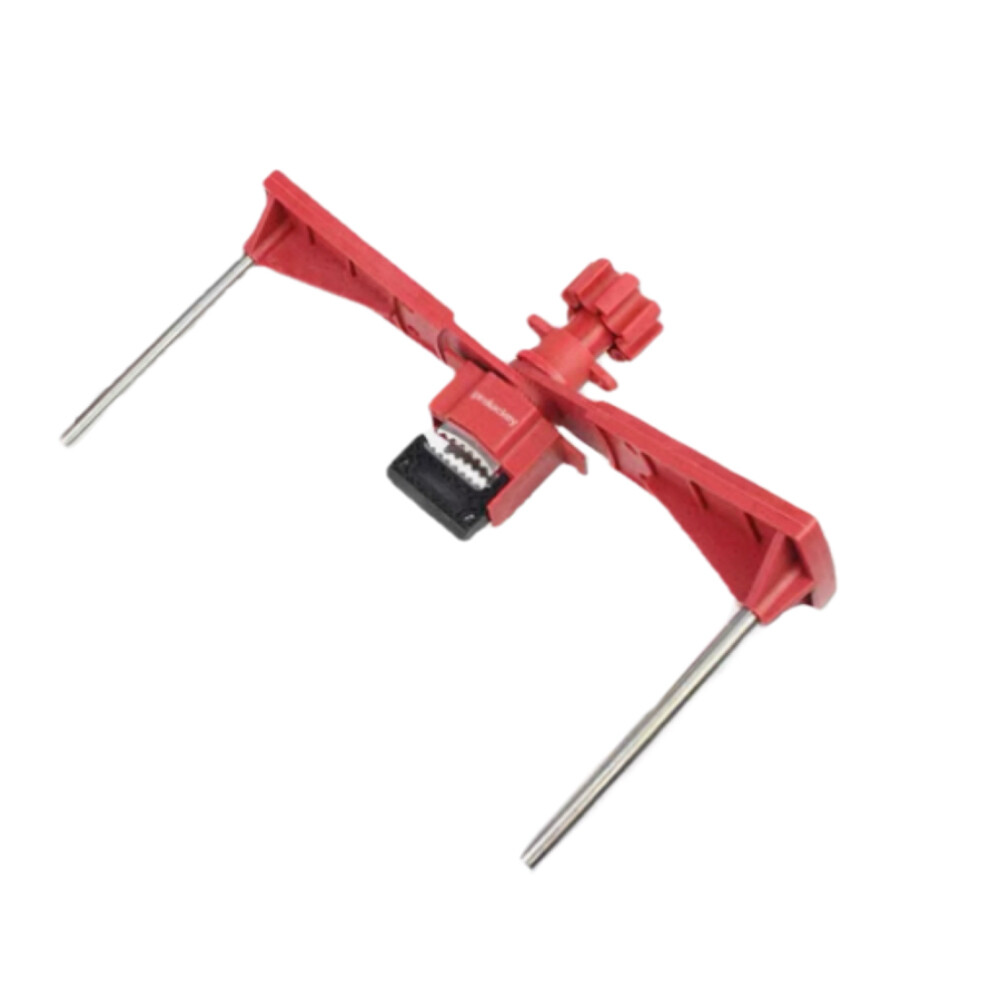

• Valve Compatibility: Jaw locking height ≤1.10in (28mm), used with a small baffle, suitable for right-angle ball valves. Effectively locks valve handles of various sizes, including large lever handles and T-handles.
• Component Set: The kit includes 1 valve lock, 1 1.50in (38mm) steel padlock, and 1 bilingual tag, offering all necessary tools for implementing valve LOTO procedures.
• Flexible Locking: Designed to lock different sizes of valve handles and hard-to-fix mechanical equipment, providing strong flexibility and ensuring a secure lockout.
• Industry Applicability: Designed for use in industrial, chemical, electronic, petroleum, coal, and flammable-explosive environments, complying with safety regulations for valve lockout and offering wide applicability.

Usage Method

1. Identify the right-angle ball valve that requires lockout, ensuring it is compatible with the jaw locking height ≤1.10in (28mm).
2. Attach the small baffle to the valve lock as needed, then position the valve lock’s jaw around the valve handle, ensuring a secure fit.
3. Insert the 1.50in (38mm) steel padlock into the valve lock to secure it, preventing the valve from being operated.
4. Attach the bilingual tag to the padlock or valve, clearly indicating the lockout status, personnel involved, and reason for lockout.
5. Verify that the lockout is secure, the baffle is properly attached, and the tag is visible. When the work is completed and it is safe to remove the lockout, remove the tag, padlock, and valve lock in sequence, and detach the baffle if necessary.

Application Scenarios

• Industrial & Chemical Plants: Implementing valve LOTO procedures on right-angle ball valves in sectors like chemical, petroleum, and manufacturing to prevent accidental valve operation.
• Valve Maintenance: Securing ball valves and other mechanical equipment during maintenance, repair, or inspection tasks to ensure worker safety and equipment integrity.
• Hazardous Environments: Meeting safety regulations in flammable-explosive environments where valve lockout is mandatory to prevent hazards and ensure operational safety.
